STICKER Input Configuration

DIP Switch Legend​

  • 🔴 = DIP switch ON [RED]
  • ⚫ = DIP switch OFF [BLACK]

1-Wire Input​

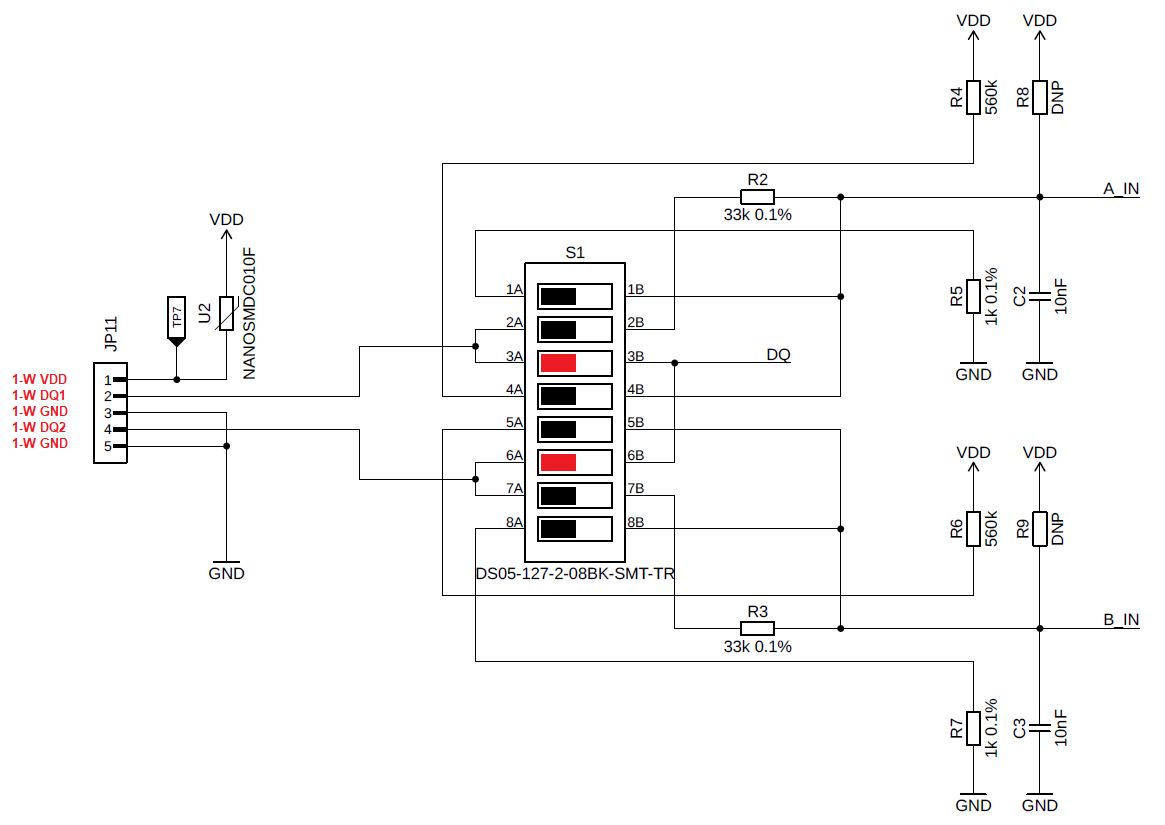

Wiring for 1-WIRE (Dallas, ...):

  • DIP switches enable the data lines (DQ1/DQ2).

STICKER 1-Wire

Dry Contact Input​

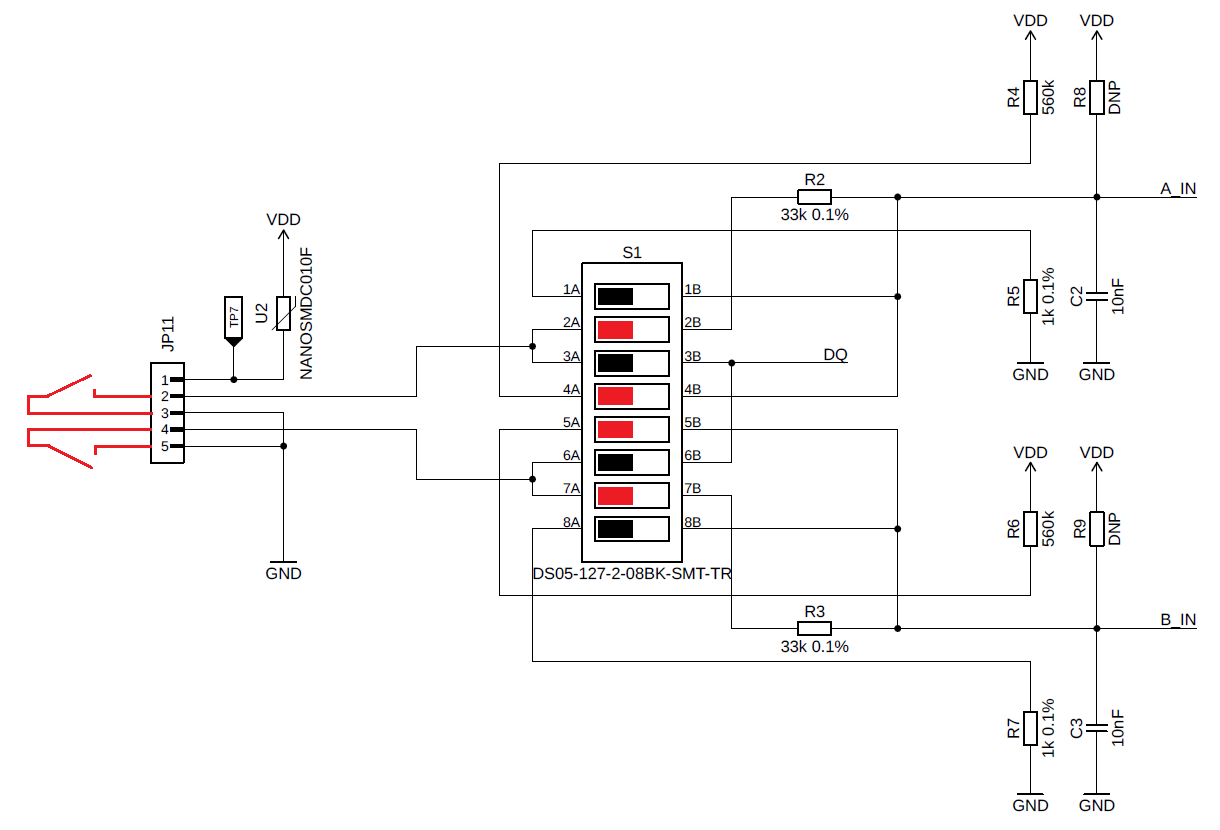

Wiring for DRY CONTACT:

  • 560 kΩ pull-up and grounded through 33 kΩ.

STICKER Dry Contact

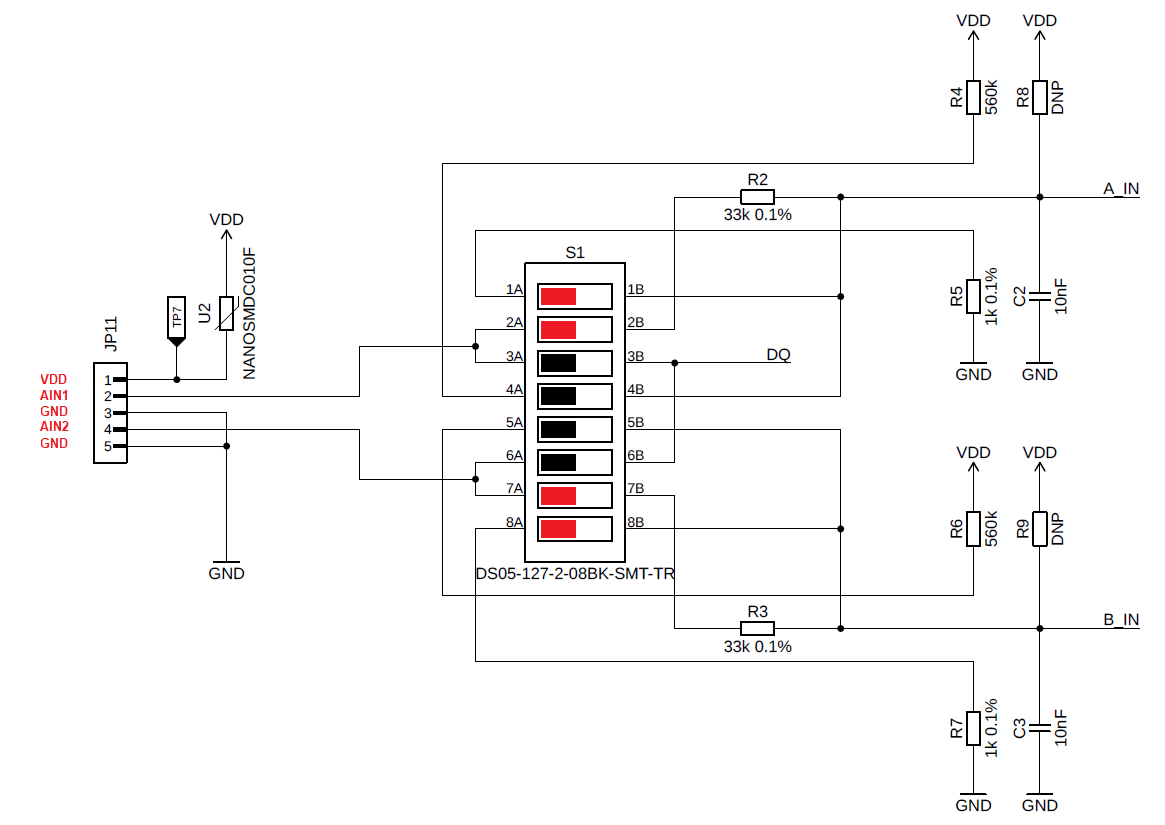

Analog Input (0–24 V)​

Analog input 0–24 V:

  • Divider 1 kΩ / 33 kΩ.

STICKER Analog Input
