Sticker Input

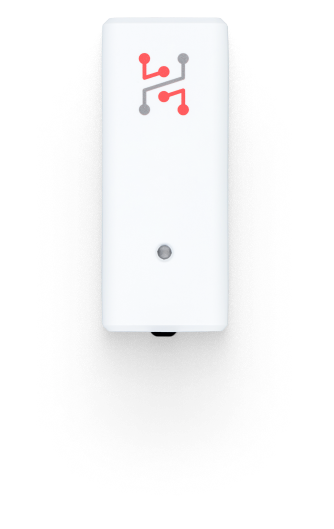

STICKER Input is a compact, wireless LoRaWAN module for connecting external sensors and reading digital or analog signals. Powered by two AA batteries, it supports 1-Wire temperature probes, voltage and current measurement, and monitoring of digital inputs up to 30 V, making it a versatile tool for industrial and monitoring applications.

Sticker Input

Typical use cases​

Smart temperature monitoring​

  • Some manufacturing processes require temperature monitoring across extreme ranges that conventional electronics can’t handle. External sensors - like 1-Wire temperature probes - are essential in such cases. A single data line can connect up to 10 sensors, enabling detailed and scalable monitoring.

Digitizing legacy machines​

  • Digitizing older machines can be tricky, even if they still run reliably. Many offer a 24 V digital output, or you can add an inductive sensor near the output mechanism to detect each produced item. This enables simple piece counting via digital signals.

Smart open/close detection​

  • Door and window detection isn’t just for security - it’s also key for smart heating and cooling. Traditional systems can be costly due to strict certification standards. STICKER Input offers a simple and affordable alternative with a built-in magnetic field sensor or digital inputs for standard switches.

Configuration and Wiring of External Inputs​

Documentation → STICKER Input Wiring

Here you can find information about STICKER input wiring, including DIP switch settings and supported modes such as 1-Wire sensors, dry contact inputs, and 0–24 V analog inputs.

Example JSON Message​

{
  "event": "change",
  "voltage": 3.01,
  "battery": 98,
  "orientation": 1,
  "input_1_state": true,
  "input_1_count": 120,
  "input_2_state": false,
  "input_2_count": 0
}
