Milesight Sensor WS523

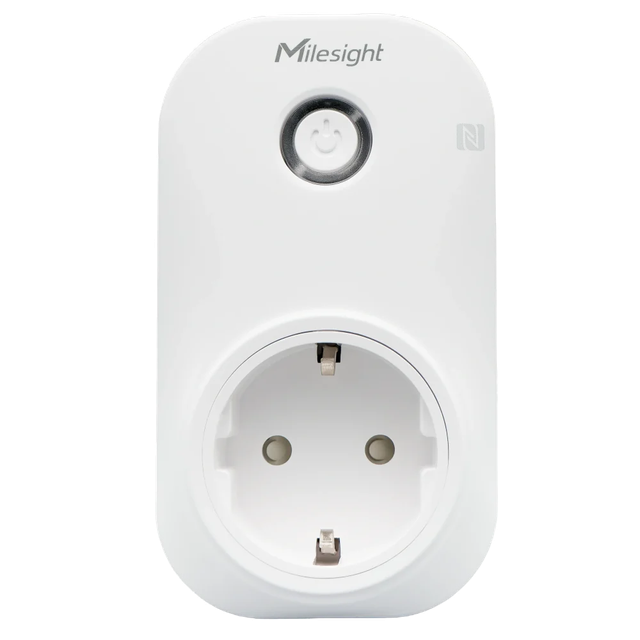

Milesight WS523 is a smart portable socket with LoRaWAN connectivity designed for remote control and power consumption monitoring. It enables scheduled on/off control of electronic devices, tracks power consumption (voltage, current, active power, power factor), and features overcurrent/overload protection. With ±3% measurement accuracy, NFC configuration, and support for multiple socket types (US, EU, AU, UK, CN), it's ideal for energy management, smart homes, and building automation applications.
Integration Links
General configuration
Configuration is done via NFC using the Milesight ToolBox app.
For sensor configuration instructions, see 👉 General configuration.
LoRaWAN Network Options
For information about supported LoRaWAN network server platforms, see 👉LoRaWAN Network Options
LoRaWAN configuration
| Parameter | Value |
|---|---|
| Work mode | Class C |
| Join type | OTAA |
| AppEUI/JoinEUI | 24E124C0002A0001 |
| AppKey | 5572404C696E6B4C6F52613230313823 |
DevEUI (Device Extended Unique Identifier) is unique for each device and can be found printed on the device label.
Data Encoding & Decoding
| Type | GitHub Link |
|---|---|
| Decoder | View decoder |
| Encoder | View encoder |
| Codec | View codec |
Terminology Overview
Decoder -> Converts the device's binary payload into readable JSON.
Encoder -> Converts JSON commands into binary payload for downlinks.
Codec -> Defines the rules for decoding and encoding (structure, fields, ports) used by network servers.
Power supply
| Type | Value |
|---|---|
| Power | 100-250 VAC, 50-60 Hz |
Technical Specifications
| Parameter | Value |
|---|---|
| Wireless Transmission | |
| Technology | LoRaWAN® |
| Antenna | Internal |
| Frequency | CN470 / IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923-1&2&3&4 |
| Tx Power | 16 dBm (868MHz) / 22 dBm (915MHz) / 19 dBm (470MHz) |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA / ABP Class C |
| Power Monitoring | |
| Voltage Measurement | VAC |
| Current Measurement | mA |
| Active Power | W |
| Power Factor | % |
| Power Consumption | kWh |
| Measurement Accuracy | Typical ±3%, Maximum ±5% |
| Load Capacity | |
| Socket Types | US-15A / EU-16A / AU-10A / UK-13A / CN versions |
| Operating Voltage | 100-250 VAC, 50-60 Hz |
| Max Load | 10A-16A (depending on version) |
| Features | |
| Remote Control | On/off switching via app/downlink |
| Scheduling | Time-based automated switching |
| Protection | Overcurrent/overload protection |
| Configuration | NFC / Downlink |
| Physical Characteristics | |
| Power Supply | 100-250 VAC mains power |
| Operating Temp | -20°C ~ +60°C |
| Ingress Protection | IP20 |
| Dimensions | 110 × 62.3 × 34.6 mm |
| Weight | 117.5 g |
| Material | Polycarbonate (UL94 V0) |
| Installation | Plug-in portable socket |
| Approvals | CE, FCC, RCM, SAA, UKCA, RoHS |
