Managing User Visibility and Permissions in ThingsBoard

ThingsBoard is incredibly powerful because it allows us to completely determine what a customer can and cannot see, and precisely define what they can and cannot do within the system. This ensures a clean and secure environment for all your users.

1. Creating User Roles​

The first step is to define roles, which act as sets of permissions.

  1. Go to the Security section in the left menu (the last item).
  2. Expand it and select Roles.
  3. To create a new role, click the plus (+) icon in the top right corner.

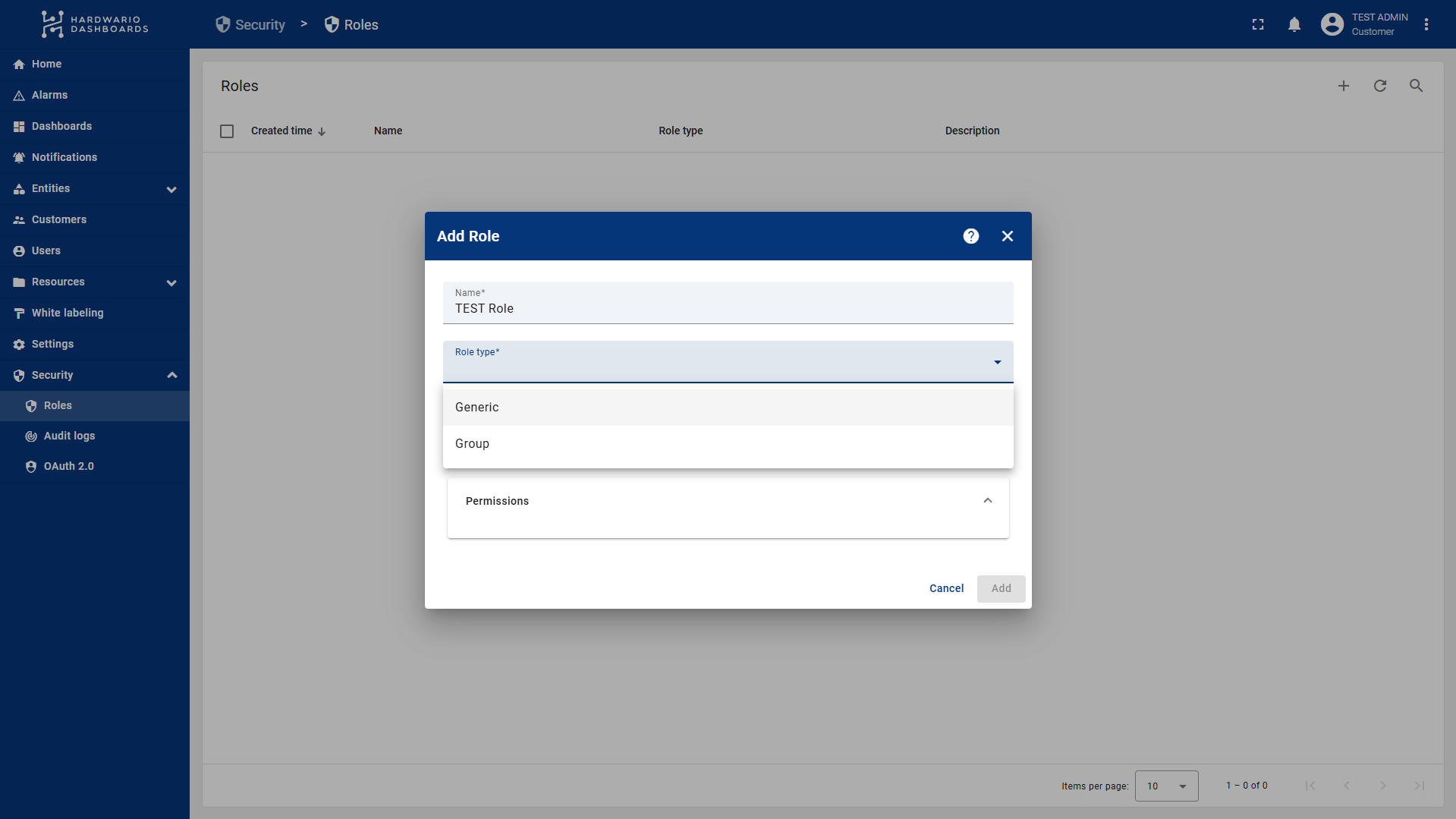

  4. Enter the Role Name, Description, and choose the Role Type.

Difference between Role Types:​

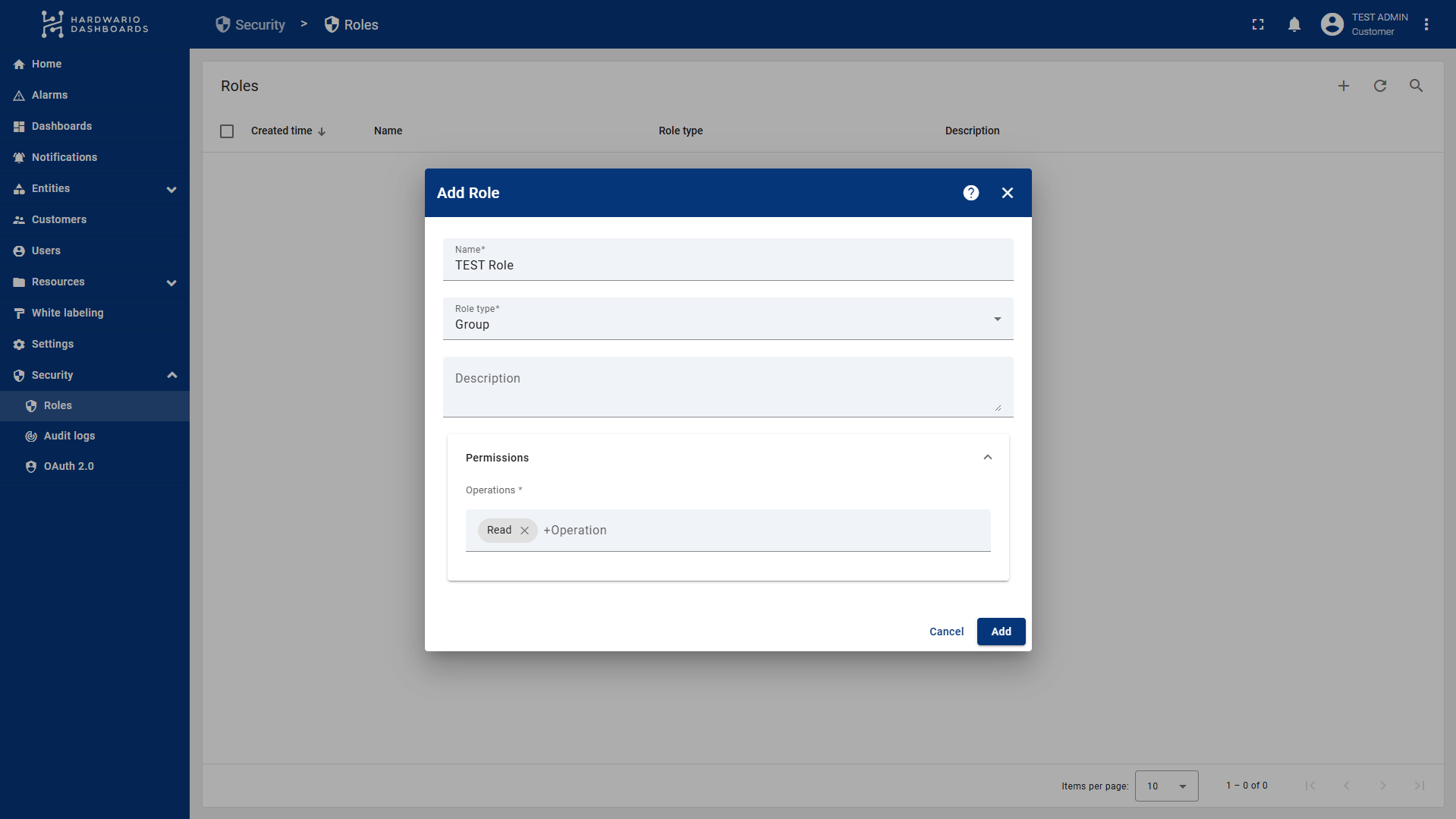

  • Group: In this type, you only specify the operations (e.g., read, write) the user can perform. This role is linked to a specific entity (device, dashboard, etc.) later when setting up user groups.

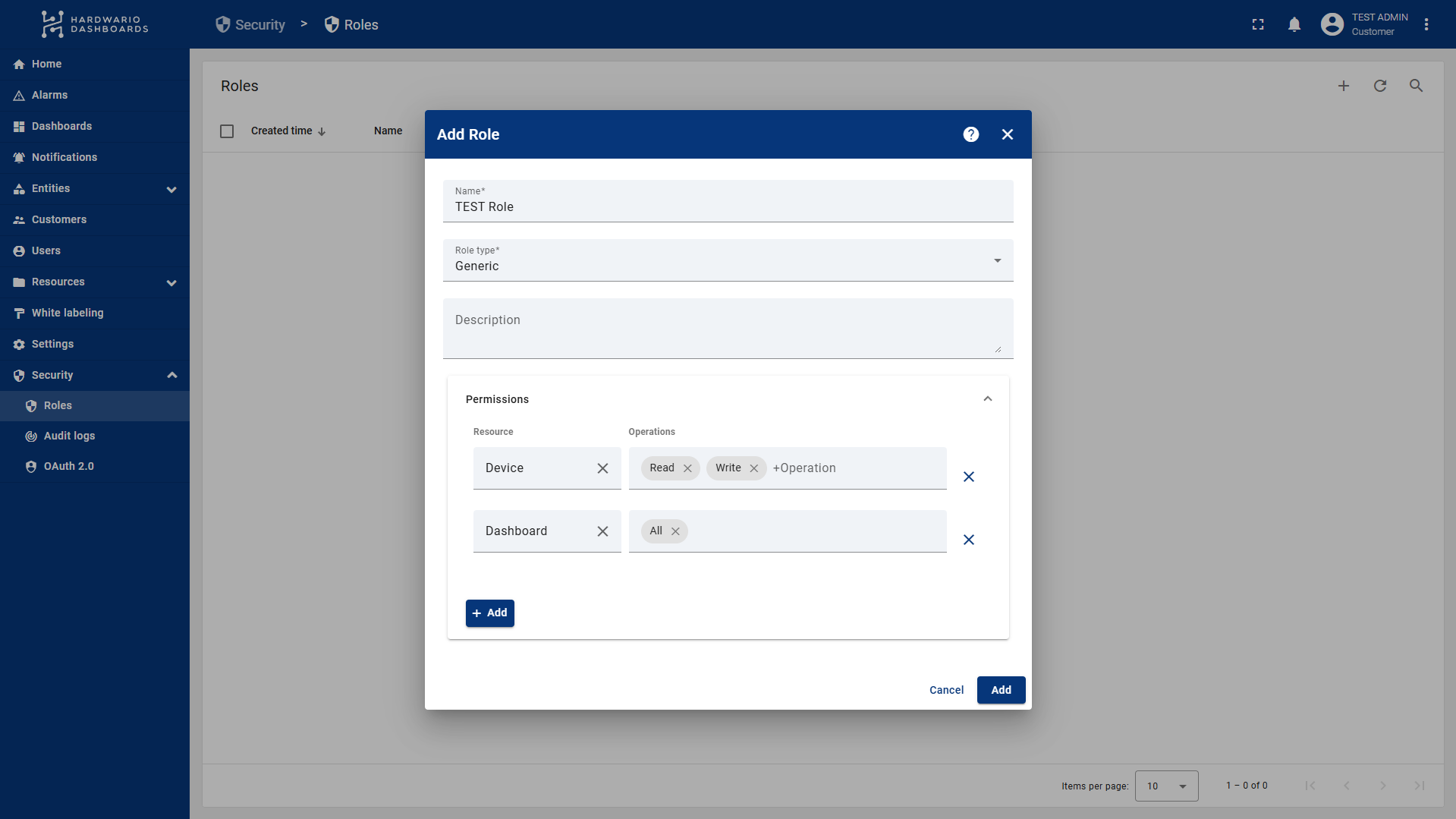

  • Generic: Here, you define exactly what the user can and cannot do globally. Note: If you grant access to "Devices" here, the user will see all devices belonging to that customer, not just a specific group.

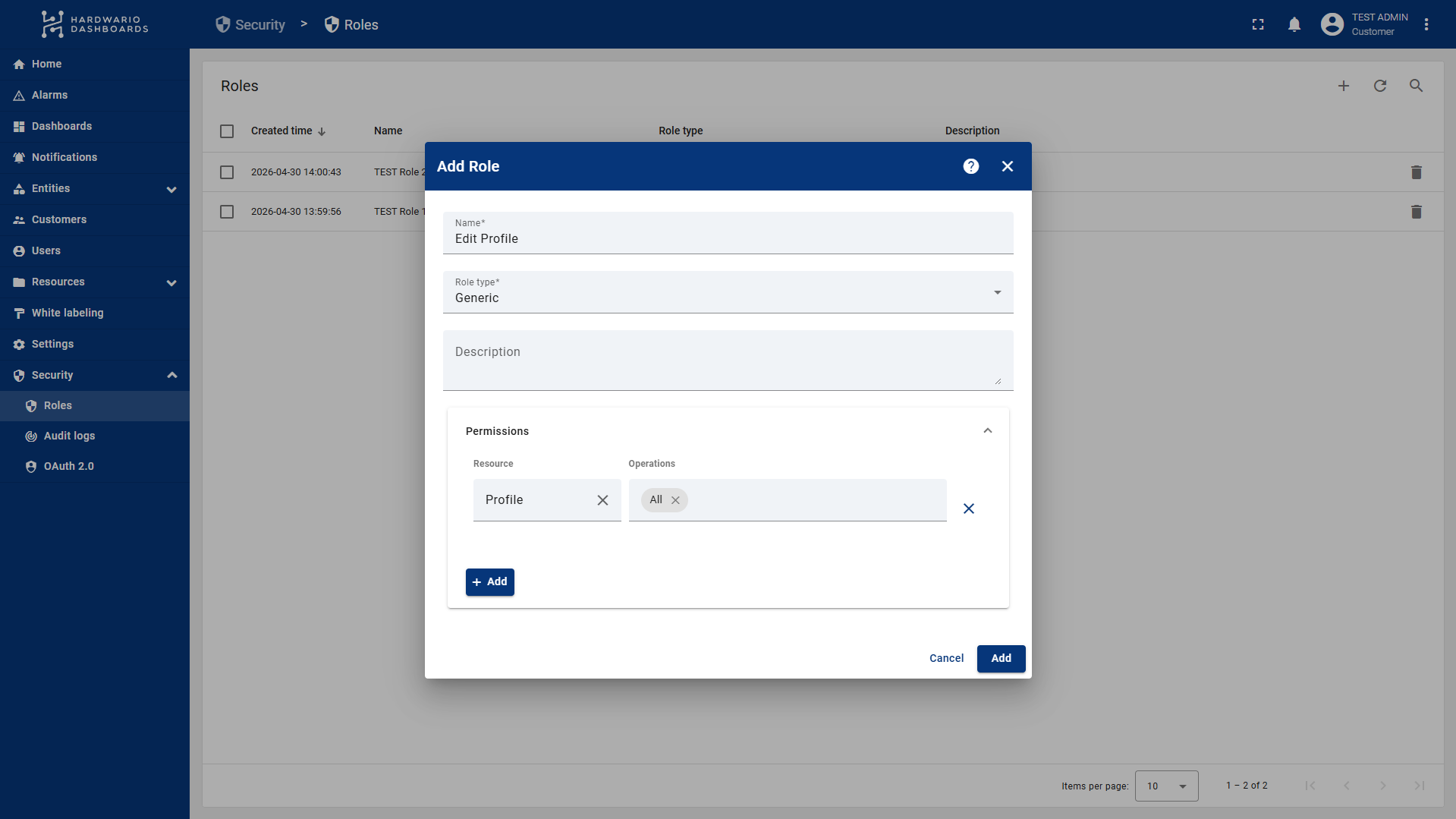

IMPORTANT (User Profile Management): For users with restricted access, it is recommended to create a Generic role where you allow All operations for the Profile resource. Adding this role to a user group allows users to change their own passwords and account details.

2. Creating User Groups​

Next, you need to create groups to which you will assign the roles created above.

  1. Go to the Users section and select the Groups tab.
  2. You will see default groups: Customer Administrators (full access) and Customer Users (read-only access to everything).

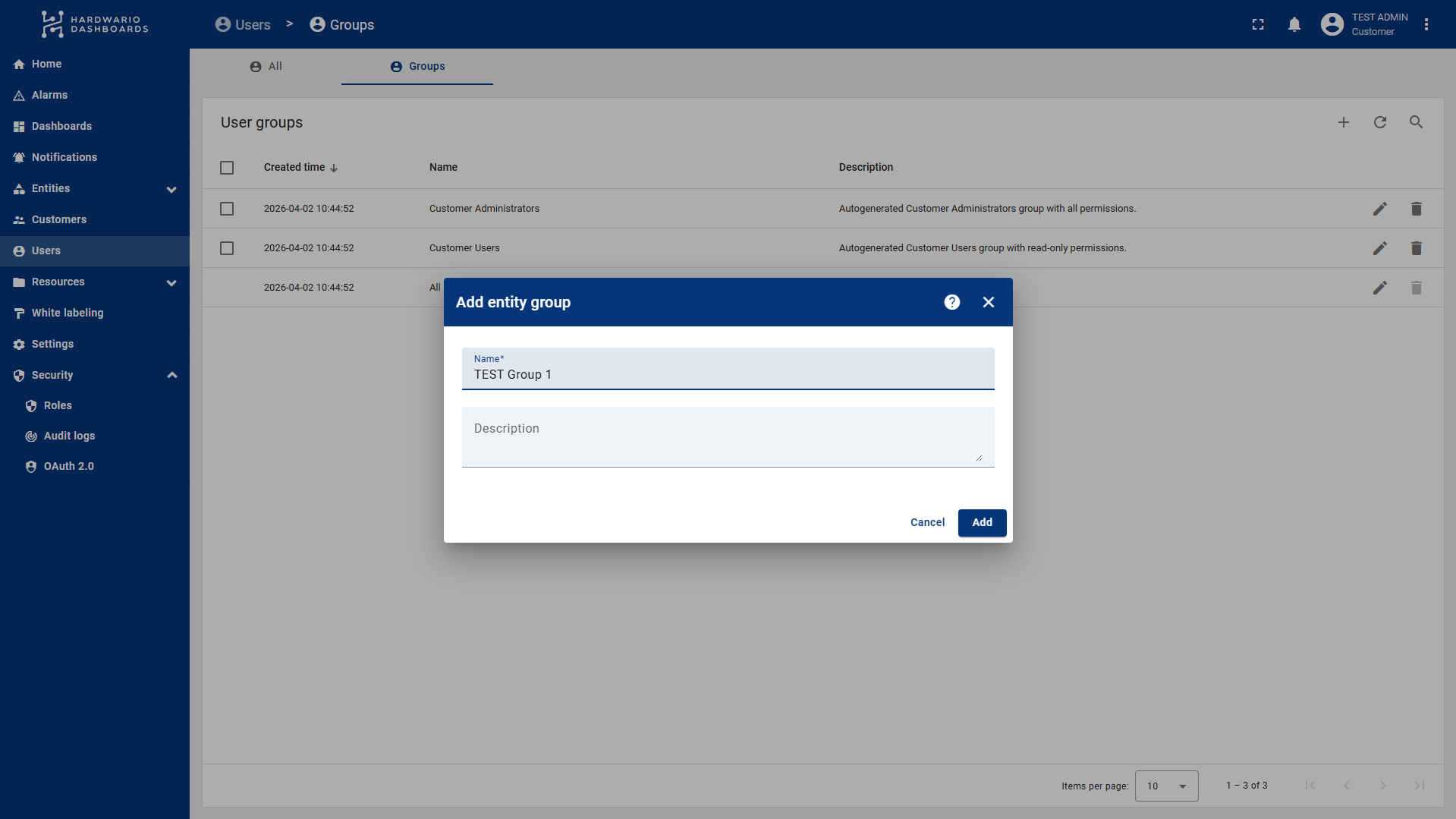

  3. Click the plus (+) icon in the top right, enter a name and description.

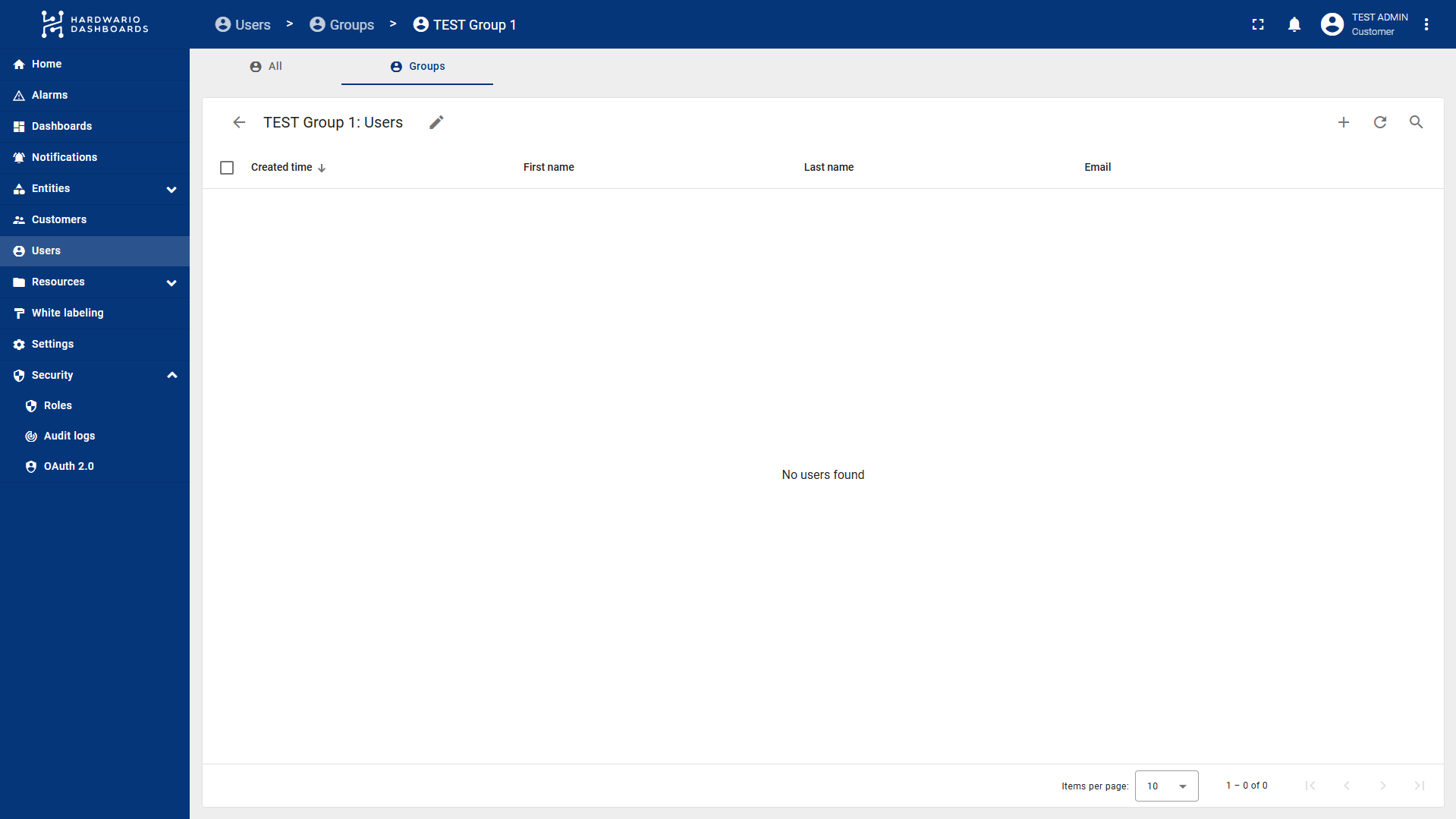

  1. Once created, click the arrow to the left of your group name to enter the group settings.

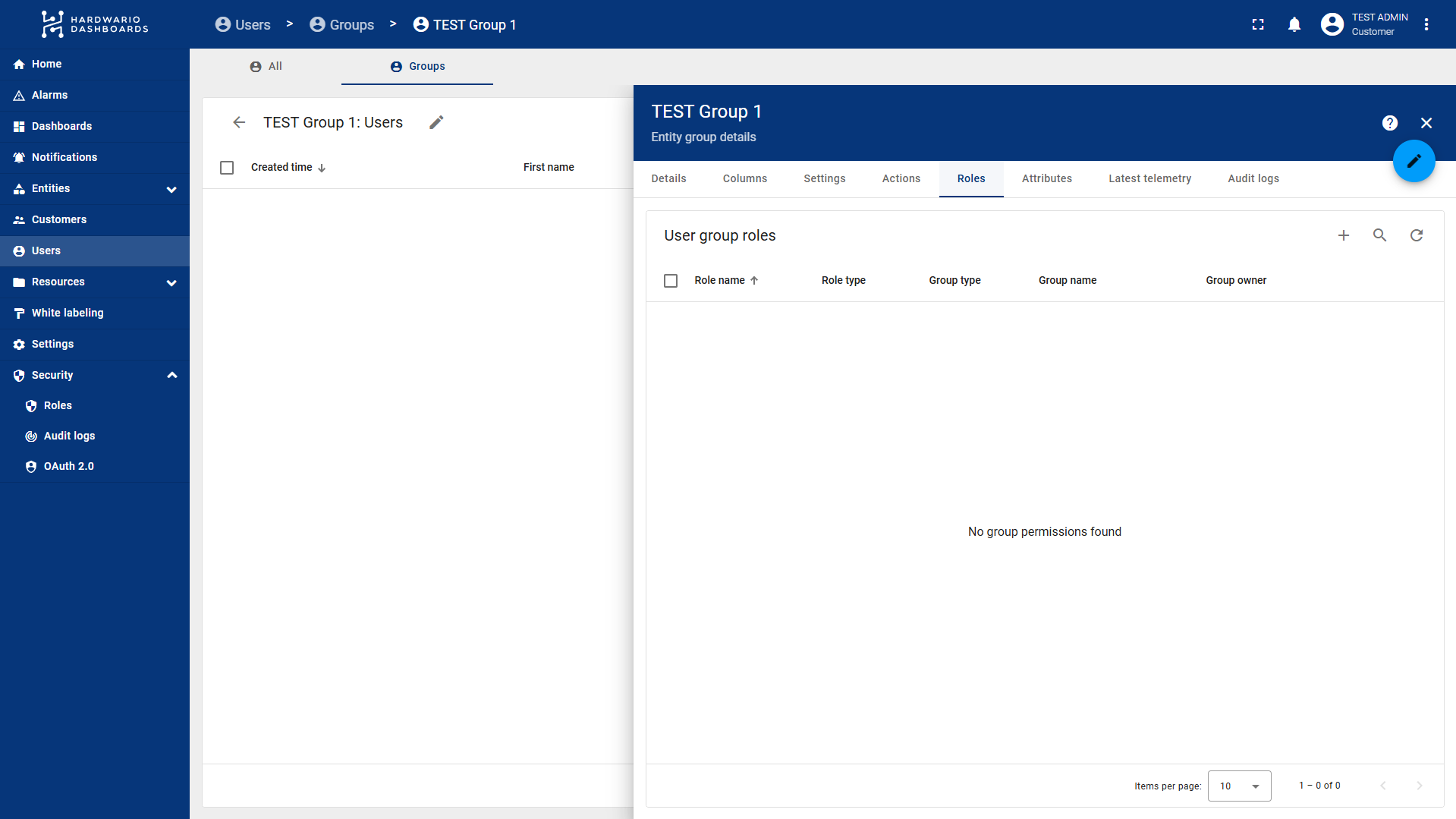

  2. Navigate to the Roles tab.

Adding Permissions to the Group:​

  1. Click the plus (+) icon located to the left of the search bar.
  2. Select your Role Type and the specific role.

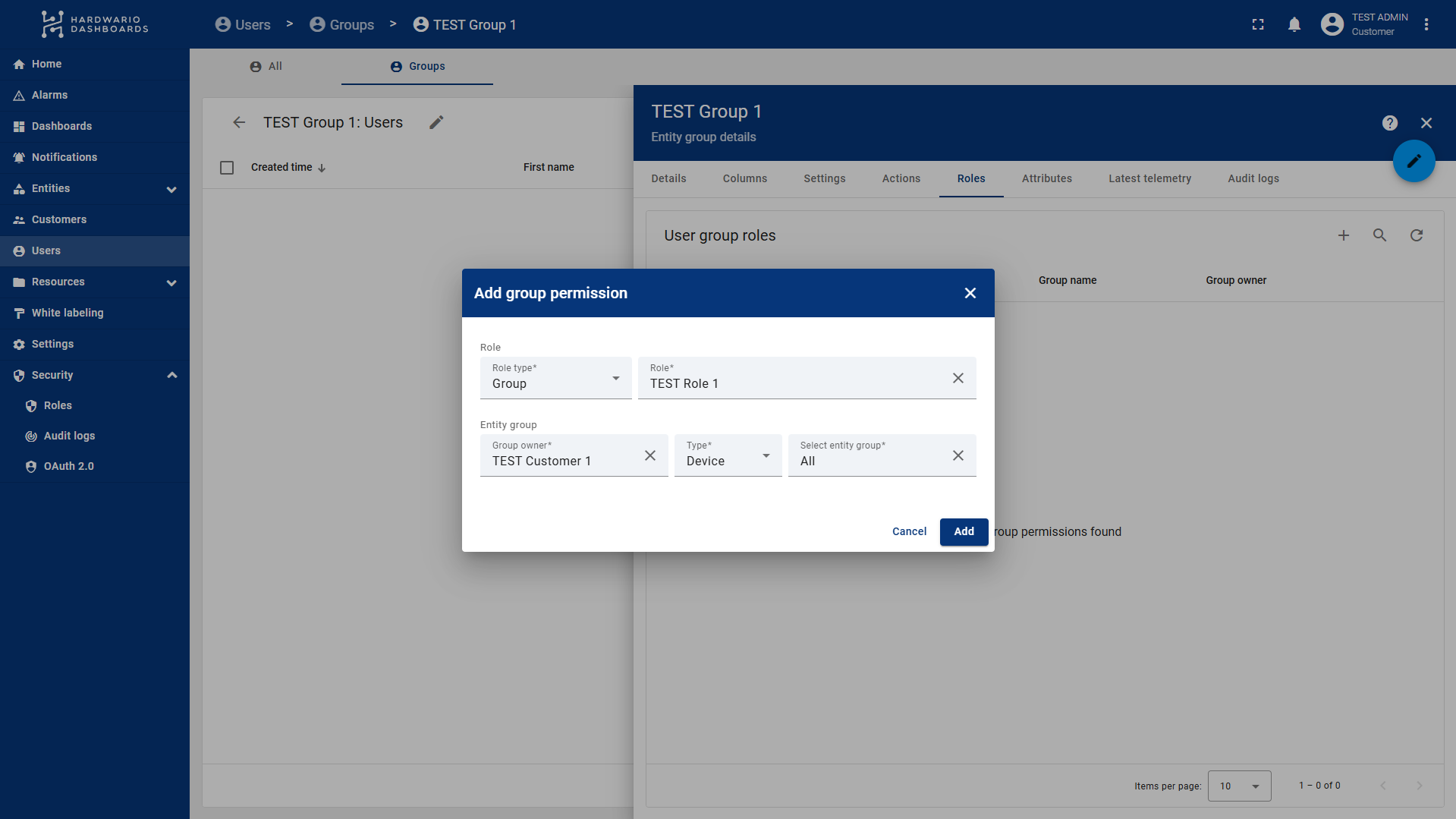

  3. If you selected Group role type, you must also specify:
    • Group Owner: Usually yourself or the specific customer.
    • Type: Define what the rules apply to (e.g., Device or Dashboard).
    • Entity Group: The specific group of entities the user should have access to.

info

You must have your Entity Groups ready beforehand. This means your devices or dashboards should already be organized into groups. You will pair these groups with the user group in this step. Creating groups for devices/dashboards is similar to creating user groups.

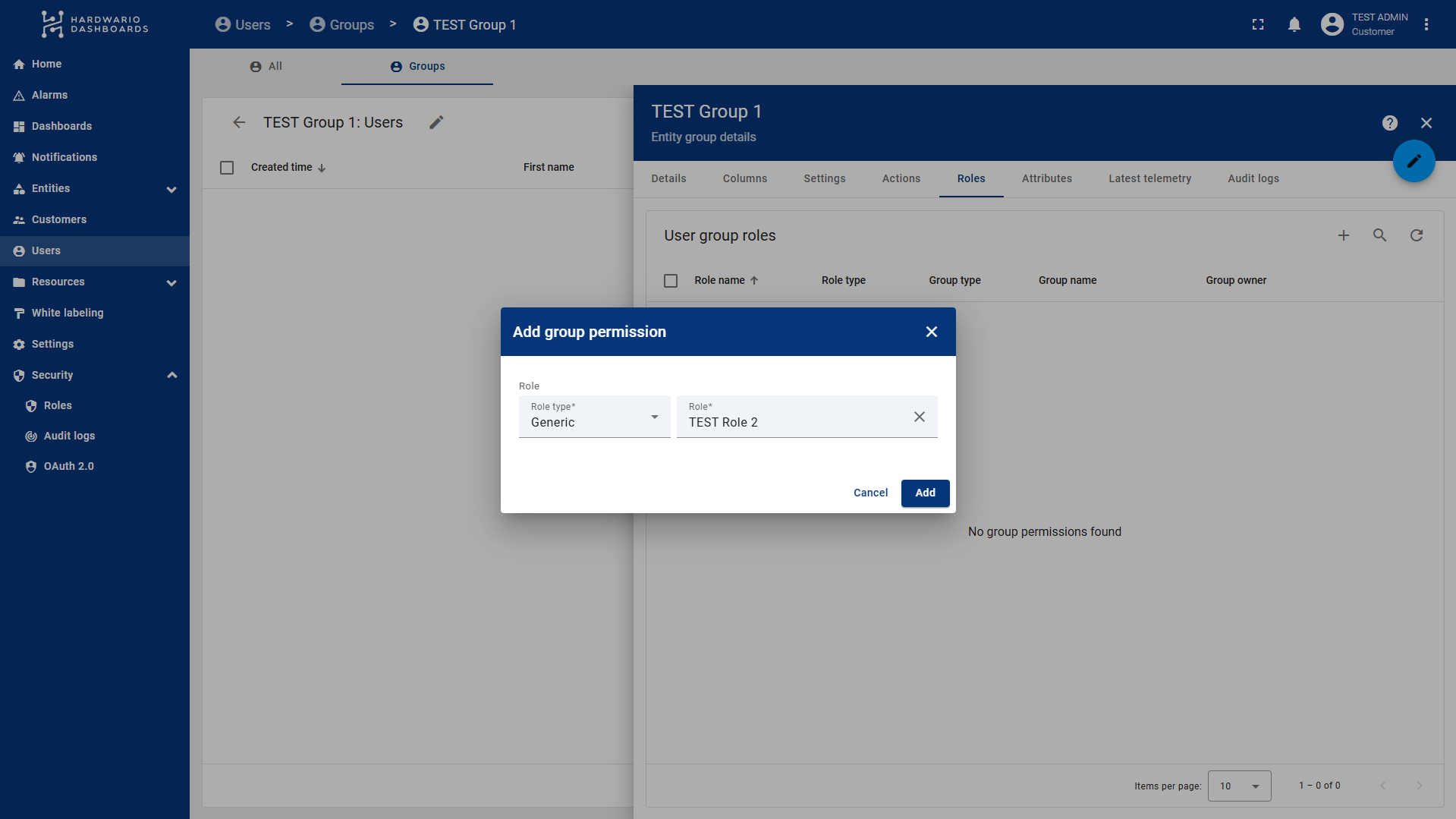

If you are adding a Generic role (like the profile editing role), you only need to select the role, and it will apply globally to the user's account permissions.

3. Adding Users to the Group​

You can add users to your newly configured group in two ways:

  1. New Users: Directly within your group (under the Users tab), click the plus (+) icon.

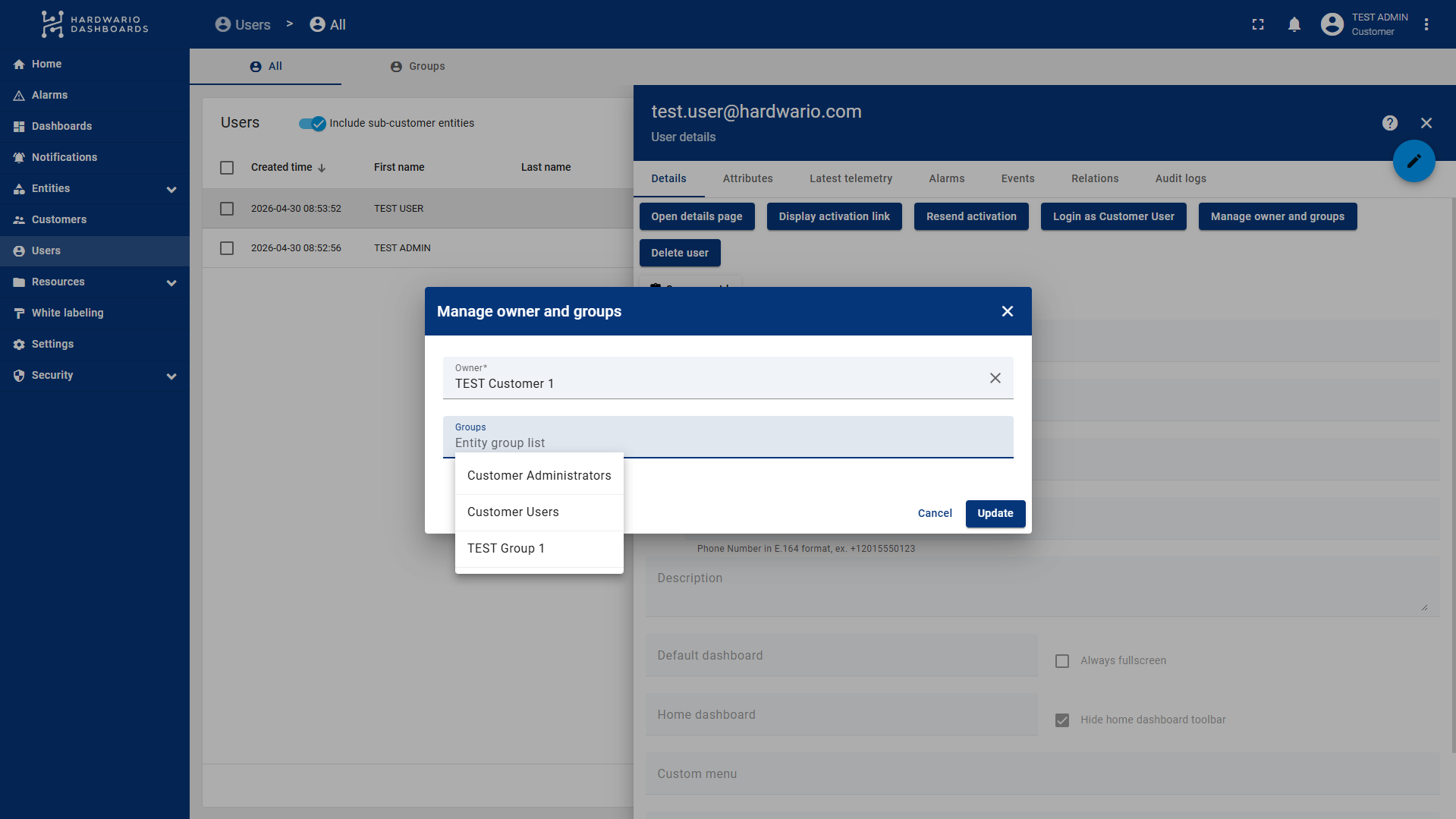

  1. Existing Users: * Go to the main Users -> Users section.
    • Click on a specific user.
    • In the Details tab, click the Manage owner and groups button.
    • Select the desired user group and click Update.
