RAK7268V2 WisGate Edge Lite 2
The RAK7268V2 WisGate Edge Lite 2 is a full 8-channel indoor LoRaWAN® gateway based on the latest WisGateOS 2. It is designed for smart building, smart office, and other indoor IoT applications.
It supports Ethernet and Wi-Fi connectivity (and optional LTE), making it a versatile choice for SOHO and enterprise environments. The gateway comes with a built-in Network Server suitable for small to medium deployments but can easily connect to major cloud platforms like The Things Stack, ChirpStack, or AWS IoT Core.
This V2 model runs on the WisGateOS 2, which offers a more modern interface, extension add-ons, and better security compared to the legacy V1 models.
Key Features
- 8 Channels: Full LoRaWAN support.
- Connectivity: 10/100M Ethernet (PoE) and 2.4 GHz Wi-Fi (AP/Client).
- Operating System: OpenWRT-based WisGateOS 2.
- Extension Add-ons: Supports Python SDK and extension installation.
- Management: Web UI, SSH, and Remote Management via WisDM.
- Antenna: Internal antenna (with option for external connectors on some models).
Technical Specifications
| Feature | Specification |
|---|---|
| Model | RAK7268V2 |
| LoRa Channels | 8 Channels |
| Frequency | EU868 (supports other regions) |
| Power Supply | 12 V DC (Power Adapter) or PoE (802.3af) |
| Network | Ethernet, Wi-Fi (802.11b/g/n) |
| Cellular | Optional (LTE Cat 4) - Check specific SKU |
| Operating Temp. | -10°C to +55°C |
| Dimensions | 166 x 129 x 43 mm |
| IP Rating | IP30 (Indoor use only) |
Quick Start Guide
1. Power On
You can power the gateway using:
- The provided 12 V DC adapter.
- An Ethernet cable connected to a PoE injector or PoE switch (IEEE 802.3af).
2. Accessing the Gateway
You can connect to the gateway's local Web UI using one of two methods:
WiFi AP Mode (Default)
- Connect your PC to the Wi-Fi SSID:
RAK7268CV2_XXXX(where XXXX are the last bytes of the MAC address). - No password is required.
- Open a web browser and go to
192.168.230.1.
Ethernet Mode
- Connect the gateway's ETH port directly to your PC.
- Set your PC to a static IP (e.g.,
169.254.15.100) to match the gateway's fallback IP (169.254.15.1).
3. Setting the Mandatory Password
When you first access the gateway, you are required to set a password for the root user. The password must meet these criteria:
- At least 12 characters long
- Includes at least one special character
- Includes at least one number
- Includes at least one Latin letter
Once the password is set, you will be redirected to the Dashboard, where you will define your country and region. Copy the 16-character Gateway EUI displayed there – you will need it for network server registration.
4. Internet Connectivity
Before the gateway can communicate with a network server, it needs an internet connection. Navigate to Network > WAN:
- Ethernet: Plug the ETH port into your router; it uses DHCP by default.
- WiFi: Go to Wi-Fi, enable the interface, and scan for your local network.

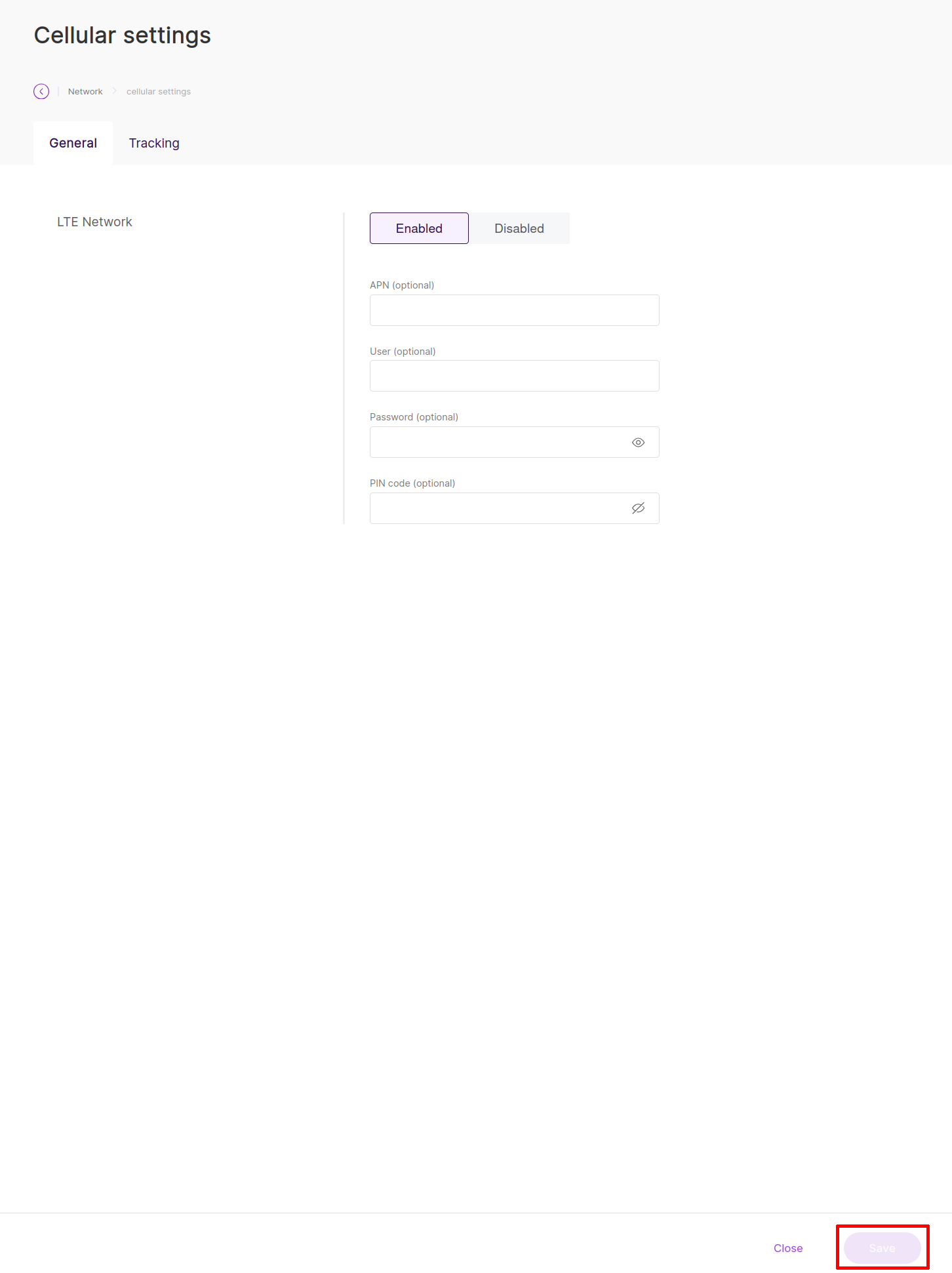

- Cellular (LTE Models): If using a SIM card, configure the APN under Cellular.
If you are not using a SIM card, disable the cellular interface to prevent SIM_ABSENT log spam.
Configuring Work Modes
The gateway supports multiple LoRaWAN work modes. Navigate to LoRa > Configuration to select your preferred mode:
Basics Station (Recommended for TTS)
Select Basics Station to connect to The Things Stack:
| Setting | Value |
|---|---|
| Basics Station Mode | LNS Server |
| Server URL | wss://hardwario-com.eu1.cloud.thethings.industries (Port 8887) |
| Trust (CA Certificate) | Upload the ISRG Root X1 .pem file |
| Client Token | Paste your TTS API Key |
Other Available Work Modes
- Packet Forwarder: Used for legacy Semtech UDP or ChirpStack MQTT connections.
- Built-in Network Server: Allows the gateway to act as its own standalone LNS (ChirpStack).
LoRaWAN Network Options
For information about supported LoRaWAN network server platforms, see LoRaWAN Network Options
